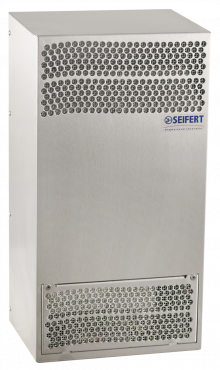

NEMA 4X

NEMA-Type-4X

NEMA Type 4X comes standard with a condensate evaporator and cabinet heater. For extreme corrosive environments, NEMA Type 4X units are also available in AISI 316 / V4A stainless steel. The cooling function maintains a threshold with a sensor that constantly monitors the internal temperature of the cabinet.

Type

Mounting

Power

Case material

Order number

OC 5704-120V

External

290 W at 50 Hz

300 W at 60 Hz

Stainless steel

57041162

OC-5704 230V

External

290 W at 50 Hz

300 W at 60 Hz

Stainless steel

57040162

OC 5705-120V

External

550 W at 50 Hz

570 W at 60 Hz

Stainless steel

57051162

OC 5705-230V

External

550 W at 50 Hz

570 W at 60 Hz

Stainless steel

57050162

OC 5705-400V

External

550 W at 50 Hz

570 W at 60 Hz

Stainless steel

57052162

OC 5708-120V

External

750 W at 50 Hz

830 W at 60 Hz

Stainless steel

57081162

OC 5708-230V

External

750 W at 50 Hz

830 W at 60 Hz

Stainless steel

57080162

OC 5708-400V

External

750 W at 50 Hz

830 W at 60 Hz

Stainless steel

57082162

OC 5709-120V

External

850 W at 50 Hz

880 W at 60 Hz

Stainless steel

57091162

OC 5709-230V

External

850 W at 50 Hz

880 W at 60 Hz

Stainless steel

57090162

OC 5709-400V

External

850 W at 50 Hz

880 W at 60 Hz

Stainless steel

57092162

OC 5710-120V

External

1000 W at 50 Hz

1080 W at 60 Hz

Stainless steel

57101162

OC 5710-230V

External

1000 W at 50 Hz

1080 W at 60 Hz

Stainless steel

57100162

OC 5710-400V

External

1000 W at 50 Hz

1080 W at 60 Hz

Stainless steel

57102162

OC 5715-120V

External

1500 W at 50 Hz

1500 W at 60 Hz

Stainless steel

57151162

OC 5715-230V

External

1500 W at 50 Hz

1500 W at 60 Hz

Stainless steel

57150162

OC 5715-400V

External

1500 W at 50 Hz

1500 W at 60 Hz

Stainless steel

57152162

OC 5720-120V

External

2000 W at 50 Hz

2000 W at 60 Hz

Stainless steel

57201162

OC 5720-230V

External

2000 W at 50 Hz

2000 W at 60 Hz

Stainless steel

57201162

OC 5720-400V

External

2000 W at 50 Hz

2000 W at 60 Hz

Stainless steel

57202162

OC 5726-120V

External

2500 W at 50 Hz

2500 W at 60 Hz

Stainless steel

57261162

OC 5726-230V

External

2500 W at 50 Hz

2500 W at 60 Hz

Stainless steel

57260162

OC 5726-400V

External

2500 W at 50 Hz

2500 W at 60 Hz

Stainless steel

57262162

OC 5731-120V

External

3000 W at 50 Hz

3000 W at 60 Hz

Stainless steel

57311162

OC 5731-230V

External

3000 W at 50 Hz

3000 W at 60 Hz

Stainless steel

57310162

OC 5731-400V

External

3000 W at 50 Hz

3000 W at 60 Hz

Stainless steel

57312162

OC 5741-230V

External

4000 W at 50 Hz

4000 W at 60 Hz

Stainless steel

57410162

OC 5741-400V

External

4000 W at 50 Hz

4000 W at 60 Hz

Stainless steel

57412162
