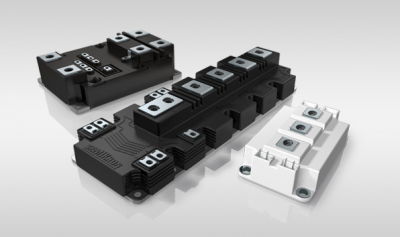

The SEMITRANS family offers a wide range of topologies and capacities. All standard voltage classes are available from 600 to 3300 V. The current ratings range from 25A to 1800A.

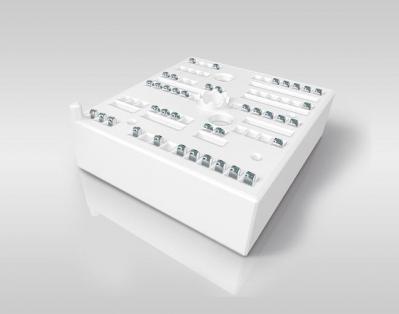

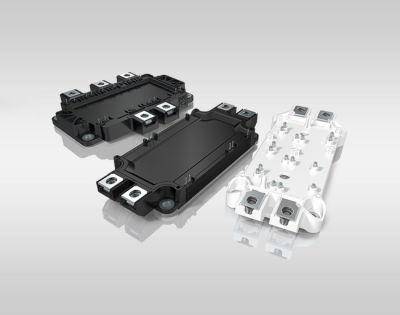

The SEMiX concept includes a combination of IGBT enclosures and rectifiers. They all have the same height (17 mm) and can be connected using the same DC-link principle. This saves development time and makes it possible to use a simple and low-intensity DC-link profile. SPRiNG or spring contacts allow you to install the driver directly on the module, eliminating the risk of noise on wires or connectors. Thanks to the flat body and connector design, a very compact, modern design is obtained. The spring contacts allow you to evenly distribute the pressure on the contact pads of the board, which provides increased reliability of the module and a longer service life.
The SKiM module can increase the reliability of inverters by several orders of magnitude, even with significant active and passive temperature fluctuations. This line is intended primarily for electric vehicles.

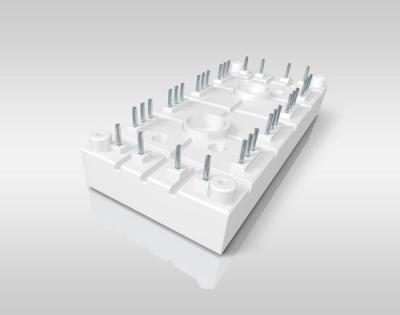

The SEMITOP platform is equipped with modules 12 mm high with one or two mounting screws. The contacts are connected to the control board either by soldering or by means of plug-in pins. The SEMITOP family has a wide variety of circuit configurations, including layer 3 topologies (NPC / TNPC) and CIB.

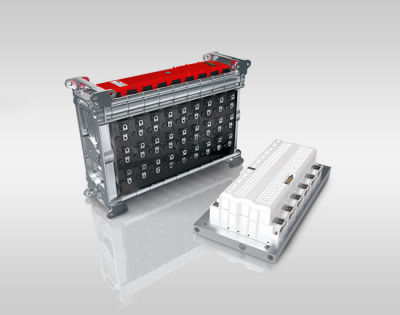

SKiiP modules are turnkey solutions for the operation of electric motors of electric vehicles and electric buses, but in addition they satisfy the requirements when used for wind turbines in the power range from 0.5 to 6 MW. In addition to wind power applications, SKiiP 3 and SKiiP 4 modules can also be found in elevators, solar power and railway transport - in fact, anywhere where powerful, safe and reliable intelligent power modules should be.

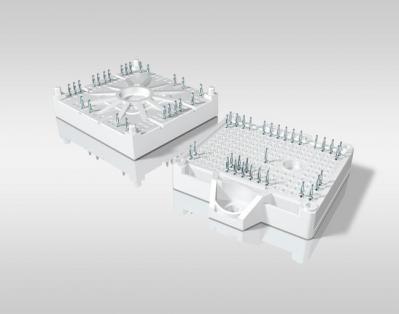

In 2017, MiniSKiiP celebrated its 20th birthday. In 2018, SEMIKRON once again demonstrates its innovative potential. With the introduction of the latest 7th generation IGBT chips, the MiniSKiiP is once again setting new performance standards for low and medium power engines. In combination with the well-known advantages of the MiniSKiiP SPRiNG technology and its simple assembly process, a new benchmark in performance and quality has been set.Compared to traditionally soldered modules, which require expensive soldering equipment and require a long soldering process, the MiniSKiiP does not require specialized tools to assemble due to a single or double screw connection. The control circuit board (PCB), power module and heatsink are assembled in just one operation. These modules use spring contacts.

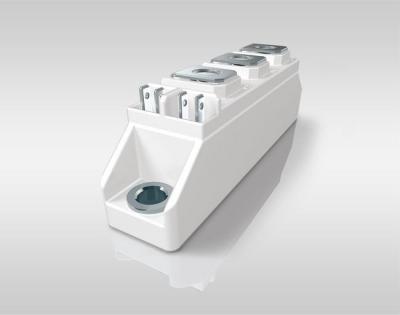

SEMIPACK was the first isolated power module on the market, and more than 40 years later it is still the most advanced.
Typical applications for a wide range of SEMIPONT power bridge rectifiers include AC and DC drives, servo drives, controlled rectifiers for DC motors, controlled rectifiers for power supplies, output rectifiers for variable frequency drives, soft starters, temperature-controlled rectifiers charger and stuff.

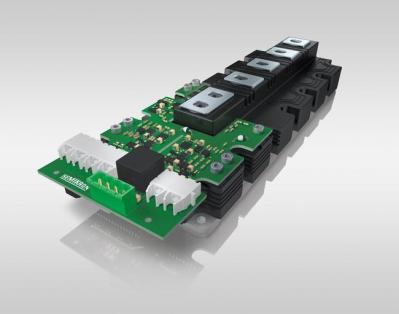

Thanks to new technologies for special-purpose microcircuits (ASICs), Semikron provides secure monitoring and control of IGBT modules throughout the entire life cycle. Short circuits are controlled by high-speed individual channels. SoftOff Feedback Prevents hazardous overvoltage across modules. Also, these microcircuits provide minimum tolerances in the temperature range. Thanks to an optimized interface and customizable filter parameters, the SKYPER family of drivers withstands external interference in 100% IEC standard.

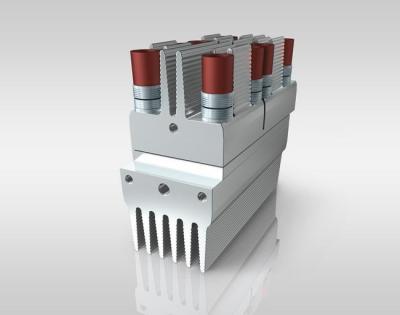

SEMiSTART - a power module with integrated radiator - provides an ultra-compact design for solutions with soft starters. Double-sided cooling along with high current capacity with overload currents up to 3080A with an overload duration of 20 s. SEMiSTART is a reliable plug'n'play subsystem that helps reduce costs and development time.

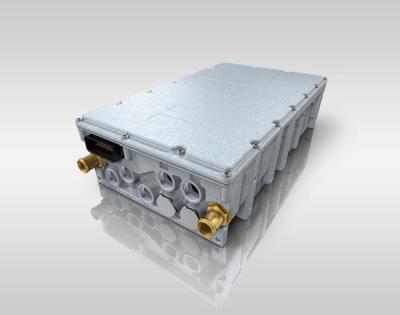

SKAI - the most compact power electronic system, "ready" for electric cars. It is intended primarily for electric vehicles. It has variations in the type of cooling, a set of functions. To date, it is the most advanced and complete system such as "set and forget."
Discrete diodes and thyristors are used in a wide variety of devices. Particular advantages are achieved when high-frequency, unusual technologies, free cooling or resistance to harsh conditions are required. Semikron's range of discrete diodes and thyristors includes axial housings with diodes up to 6A, diodes and thyristors in a screw-mount housing, and barrels up to 6000A and 8000V for diodes and up to 1200A and 1800V for thyristors. Indisputable advantages are also easy assembly, tight housing and robust construction.

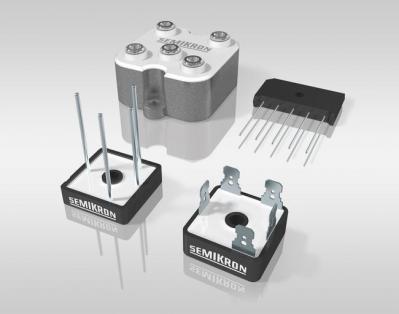

Single and three phase isolated rectifier bridges for low and medium power applications. Standard and special topologies with diodes, thyristors and IGBTs are available in various housing and terminal options. For voltage ranges from 200 V to 2200 V and current ranges from 9A to 494A.
