OUTDOOR. The protection values ​​are up to IP64 / NEMA type 12, 3, 3R, 4. These features make them ideal for installation in outdoor cabinets, providing maximum performance with minimal maintenance. Both built-in and external mounting versions are available. The cooling function maintains a threshold with a sensor that constantly monitors the internal temperature of the case.

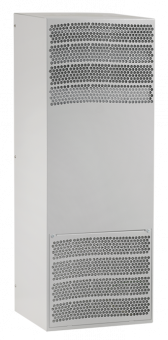

ComPact Outdoor​​​​​​​

Order no. Description Mild Steel + Aluzinc Full Stainless Steel 304 Full Stainless Steel 316 Protection class              NEMA type Cooling capacity L35/L35 Voltage / frequency
570400001 OC 5704-230V RAL7035 l IP 56 / Type 12, 3, 3R, 4 300 W 230 V ~ 50/60 Hz
57040062 OC 5704-230V l IP 56 / Type 12,3,3R, 4X
57040064 OC 5704-230V l
570410001 OC 5704-120V RAL7035 l IP 56 / Type 12, 3, 3R, 4 120 V ~ 60 Hz
57041062 OC 5704-120V l IP 56 / Type 12,3,3R, 4X
57041064 OC 5704-120V l
570500001 OC 5705-230V RAL7035 l IP 56 / Type 12, 3, 3R, 4 550 W 230 V ~ 50/60 Hz
57050062 OC 5705-230V l IP 56 / Type 12,3,3R, 4X
57050064 OC 5705-230V l
570510001 OC 5705-120V RAL7035 l IP 56 / Type 12, 3, 3R, 4 120 V ~ 60 Hz
57051062 OC 5705-120V l IP 56 / Type 12,3,3R, 4X
57051064 OC 5705-120V l
570520001 OC 5705-400V RAL7035 l IP 56 / Type 12, 3, 3R, 4 400/460 V — 50/60 Hz ~2
57052062 OC 5705-400V l IP 56 / Type 12,3,3R, 4X
57052064 OC 5705-400V l
570800001 OC 5708-230V RAL7035 l IP 56 / Type 12, 3, 3R, 4 750 W 230 V ~ 50/60 Hz
57080062 OC 5708-230V l IP 56 / Type 12,3,3R, 4X
57080064 OC 5708-230V l
570810001 OC 5708-120V RAL7035 l IP 56 / Type 12, 3, 3R, 4 120 V ~ 60 Hz
57081062 OC 5708-120V l IP 56 / Type 12,3,3R, 4X
57081064 OC 5708-120V l
570820001 OC 5708-400V RAL7035 l IP 56 / Type 12, 3, 3R, 4 400/460 V — 50/60 Hz ~2
57082062 OC 5708-400V l IP 56 / Type 12,3,3R, 4X
57082064 OC 5708-400V l
570900001 OC 5709-230V RAL7035 l IP 56 / Type 12, 3, 3R, 4 850 W 230 V ~ 50/60 Hz
57090062 OC 5709-230V l IP 56 / Type 12,3,3R, 4X
57090064 OC 5709-230V l
570910001 OC 5709-120V RAL7035 l IP 56 / Type 12, 3, 3R, 4 120 V ~ 60 Hz
57091062 OC 5709-120V l IP 56 / Type 12,3,3R, 4X
57091064 OC 5709-120V l
570920001 OC 5709-400V RAL7035 l IP 56 / Type 12, 3, 3R, 4 400/460 V — 50/60 Hz ~2
57092062 OC 5709-400V l IP 56 / Type 12,3,3R, 4X
57092064 OC 5709-400V l
571000001 OC 5710-230V RAL7035 l IP 56 / Type 12, 3, 3R, 4 1 kW 230 V ~ 50/60 Hz
57100062 OC 5710-230V l IP 56 / Type 12,3,3R, 4X
57100064 OC 5710-230V l
571010001 OC 5710-120V RAL7035 l IP 56 / Type 12, 3, 3R, 4 120 V ~ 60 Hz
57101062 OC 5710-120V l IP 56 / Type 12,3,3R, 4X
57101064 OC 5710-120V l
571020001 OC 5710-400V RAL7035 l IP 56 / Type 12, 3, 3R, 4 400/460 V — 50/60 Hz ~2
57102062 OC 5710-400V l IP 56 / Type 12,3,3R, 4X
57102064 OC 5710-400V l

ComPact Outdoor​​​​​​​

Order no. Description Mild Steel + Aluzinc Full Stainless Steel 304 Full Stainless Steel 316 Protection class              NEMA type Cooling capacity L35/L35 Voltage / frequency
571500001 OC 5715-230V RAL7035 l IP 56 / Type 12, 3, 3R, 4 1.5 kW 230 V ~ 50/60 Hz
57150062 OC 5715-230V l IP 56 / Type 12,3,3R, 4X
57150064 OC 5715-230V l
571510001 OC 5715-120V RAL7035 l IP 56 / Type 12, 3, 3R, 4 120 V ~ 60 Hz
57151062 OC 5715-120V l IP 56 / Type 12,3,3R, 4X
57151064 OC 5715-120V l
571520001 OC 5715-400V RAL7035 l IP 56 / Type 12, 3, 3R, 4 400/460 V — 50/60 Hz ~2
57152062 OC 5715-400V l IP 56 / Type 12,3,3R, 4X
57152064 OC 5715-400V l
572000001 OC 5720-230V  RAL7035 l IP 56 / Type 12, 3, 3R, 4 2 kW 230 V ~ 50/60 Hz
57200062 OC 5720-230V l IP 56 / Type 12,3,3R, 4X
57200064 OC 5720-230V l
572010001 OC 5720-120V  RAL7035 l IP 56 / Type 12, 3, 3R, 4 120 V ~ 60 Hz
57201062 OC 5720-120V l IP 56 / Type 12,3,3R, 4X
57201064 OC 5720-120V l
572020001 OC 5720-400V  RAL7035 l IP 56 / Type 12, 3, 3R, 4 400/460 V — 50/60 Hz ~3
57202062 OC 5720-400V l IP 56 / Type 12,3,3R, 4X
57202064 OC 5720-400V l
572600001 OC 5726-230V RAL7035 l IP 56 / Type 12, 3, 3R, 4 2.5 kW 230 V ~ 50/60 Hz
57260062 OC 5726-230V l IP 56 / Type 12,3,3R, 4X
57260064 OC 5726-230V6 l
572610001 OC 5726-120V RAL7035 l IP 56 / Type 12, 3, 3R, 4 120 V ~ 60 Hz
57261062 OC 5726-120V l IP 56 / Type 12,3,3R, 4X
57261064 OC 5726-120V l
572620001 OC 5726-400V RAL7035 l IP 56 / Type 12, 3, 3R, 4 400/460 V — 50/60 Hz ~2
57262062 OC 5726-400V l IP 56 / Type 12,3,3R, 4X
57262064 OC 5726-400V l
573100001 OC 5731-230V RAL7035 l IP 56 / Type 12, 3, 3R, 4 3 kW 230 V ~ 50/60 Hz
57310062 OC 5731-230V l IP 56 / Type 12,3,3R, 4X
57310064 OC 5731-230V l
573110001 OC 5731-120  RAL7035 l IP 56 / Type 12, 3, 3R, 4 120 V ~ 60 Hz
57311062 OC 5731-120 l IP 56 / Type 12,3,3R, 4X
57311064 OC 5731-120 l
573120001 OC 5731-400V  RAL7035 l IP 56 / Type 12, 3, 3R, 4 400/460 V — 50/60 Hz ~3
57312062 OC 5731-400V l IP 56 / Type 12,3,3R, 4X
57312064 OC 5731-400V l
574100001 OC 5741-230V RAL7035 l IP 56 / Type 12, 3, 3R, 4 4 kW 230 V ~ 50/60 Hz
57410062 OC 5741-230V l IP 56 / Type 12,3,3R, 4X
57410064 OC 5741-230V l
574120001 OC 5741-400V  RAL7035 l IP 56 / Type 12, 3, 3R, 4 400/460 V — 50/60 Hz ~3
57412062 OC 5741-400V l IP 56 / Type 12,3,3R, 4X
57412064 OC 5741-400V l

Outdoor miscellaneous

Order no. Description Mild Steel + Aluzinc Full Stainless Steel 304 Full Stainless Steel 316 Protection class              NEMA type Cooling capacity L35/L35 Voltage / frequency
42690801 OC-4269, SlimLine with cabinet heater l IP 54 / Type 12, 3, 3R 380 W 230 V ~ 50/60 Hz
4105000 OC-4105, internally mounted l IP 55 / Type 12, 3, 3R 650 W 230 V ~ 50/60 Hz
4105010 OC-4105 with cabinet heater l
4106001 OC-4106, internally mounted l IP 65 / Type 12,3,3R, 4 850W 230 V ~ 50/60 Hz
4107000 OC-4107, internally mounted l IP 55 / Type 12, 3, 3R 800 W 230 V ~ 50/60 Hz
4107001 OC-4107 with cabinet heater l
4108000 OC-4108, internally mounted l IP 55 / Type 12, 3, 3R 800 W 230 V ~ 50/60 Hz
4108010 OC-4108 with cabinet heater l
4109000 OC-4109, internally mounted l IP 55 / Type 12, 3, 3R 1.5 kW 230 V ~ 50/60 Hz
4109010 OC-4109 with cabinet heater l
45372001 OC-4537 roof mounted l IP 56 / Type 12,3,3R, 4 4 kW 400/460 V — 50/60 Hz ~3
4537202 OC-4537 roof mounted l IP 56 / Type 12,3,3R, 4X
