SlimLine Pro

SlimLine-Pro

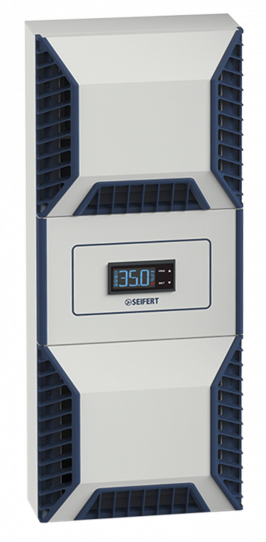

SlimLine Pro is energy efficient and ideal for both indoor and outdoor use. Operational temperature range from -40 ° C to 60 ° C, protection classes IP 56 or NEMA types 3, 3R, 12, 4 and 4X. With cooling capacities from 300 W to 6 kW, SlimLine Pro Series covers a wide range of applications. By default, SlimLine Pro has a powder-coated sheet steel housing (RAL7035). For applications where hygiene or high corrosion protection is required, we also offer SlimLine Pro stainless steel units.

SlimLine Pro​​​​​​​

Order no. Description Mild Steel + Aluzinc + Plastic grids Mild Steel + Aluzinc + Metal grids Full Stainless Steel V2A Protection class NEMA type Cooling capacity L35/L35 Voltage / frequency
850300001 KG 8503-230V RAL7035 l IP 56 / Type 12, 3, 3R,  4 300 W 230 V ~ 50/60 Hz
8503000S01 KG 8503-230V RAL7035 l
850300S62 KG 8503-230V S/S 304 l IP 56 / Type 12, 3, 3R,  4X
850310001 KG 8503-120V RAL7035 l IP 56 / Type 12, 3, 3R,  4 120V ~ 60 Hz
8503100S01 KG 8503-120V RAL7035 l
850310S62 KG 8503-120V S/S 304 l IP 56 / Type 12, 3, 3R,  4X
850600001 KG 8506-230V RAL7035 l IP 56 / Type 12, 3, 3R,  4 600 W 230 V ~ 50/60 Hz
8506000S01 KG 8506-230V RAL7035 l
850600S62 KG 8506-230V S/S 304 l IP 56 / Type 12, 3, 3R,  4X
850610001 KG 8506-120V RAL7035 l IP 56 / Type 12, 3, 3R,  4 120V ~ 60 Hz
8506100S01 KG 8506-120V RAL7035 l
850610S62 KG 8506-120V S/S 304 l IP 56 / Type 12, 3, 3R,  4X
850620001 KG 8506-400V RAL7035 l IP 56 / Type 12, 3, 3R,  4 400/460 V 50/60 Hz 2~
8506200S01 KG 8506-400V RAL7035 l
850620S62 KG 8506-400V S/S 304 l IP 56 / Type 12, 3, 3R,  4X
850800001 KG 8508-230V RAL7035 l IP 56 / Type 12, 3, 3R,  4 800 W 230 V ~ 50/60 Hz
8508000S01 KG 8508-230V RAL7035 l
850800S62 KG 8508-230V S/S 304 l IP 56 / Type 12, 3, 3R,  4X
850810001 KG 8508-120V RAL7035 l IP 56 / Type 12, 3, 3R,  4 120V ~ 60 Hz
8508100S01 KG 8508-120V RAL7035 l
850810S62 KG 8508-120V S/S 304 l IP 56 / Type 12, 3, 3R,  4X
850820001 KG 8508-400V RAL7035 l IP 56 / Type 12, 3, 3R,  4 400/460 V 50/60 Hz 2~
8508200S01 KG 8508-400V RAL7035 l
850820S62 KG 8508-400V S/S 304 l IP 56 / Type 12, 3, 3R,  4X
851200001 KG 8512-230V RAL7035 l IP 56 / Type 12, 3, 3R,  4 1,2 kW 230 V ~ 50/60 Hz
8512000S01 KG 8512-230V RAL7035 l
851200S62 KG 8512-230V S/S 304 l IP 56 / Type 12, 3, 3R,  4X
851210001 KG 8512-120V RAL7035 l IP 56 / Type 12, 3, 3R,  4 120V ~ 60 Hz
8512100S01 KG 8512-120V RAL7035 l
851210S62 KG 8512-120V S/S 304 l IP 56 / Type 12, 3, 3R,  4X
851220001 KG 8512-400V RAL7035 l IP 56 / Type 12, 3, 3R,  4 400/460 V 50/60 Hz 2~
8512200S01 KG 8512-400V RAL7035 l
851220S62 KG 8512-400V S/S 304 l IP 56 / Type 12, 3, 3R,  4X
851500001 KG 8515-230V RAL7035 l IP 56 / Type 12, 3, 3R,  4 1,5 kW 230 V ~ 50/60 Hz
8515000S01 KG 8515-230V RAL7035 l
851500S62 KG 8515-230V S/S 304 l IP 56 / Type 12, 3, 3R,  4X
851510001 KG 8515-120V RAL7035 l IP 56 / Type 12, 3, 3R,  4 120V ~ 60 Hz
8515100S01 KG 8515-120V RAL7035 l
851510S62 KG 8515-120V S/S 304 l IP 56 / Type 12, 3, 3R,  4X
851520001 KG 8515-400V RAL7035 l IP 56 / Type 12, 3, 3R,  4 400/460 V 50/60 Hz 2~
8515200S01 KG 8515-400V RAL7035 l
851520S62 KG 8515-400V S/S 304 l IP 56 / Type 12, 3, 3R,  4X

SlimLine Pro​​​​​​​

Order no. Description Mild Steel + Aluzinc + Plastic grids Mild Steel + Aluzinc + Metal grids Full Stainless Steel V2A Protection class NEMA type Cooling capacity L35/L35 Voltage / frequency
852000001 KG 8520-230V RAL7035 l IP 56 / Type 12, 3, 3R,  4 2 kW 230 V ~ 50/60 Hz
8520000S01 KG 8520-230V RAL7035 l
852000S62 KG 8520-230V S/S 304 l IP 56 / Type 12, 3, 3R,  4X
852010001 KG 8520-120V RAL7035 l IP 56 / Type 12, 3, 3R,  4 120V ~ 60 Hz
8520100S01 KG 8520-120V RAL7035 l
852010S62 KG 8520-120V S/S 304 l IP 56 / Type 12, 3, 3R,  4X
852020001 KG 8520-400V RAL7035 l IP 56 / Type 12, 3, 3R,  4 400/460 V 50/60 Hz 3~
8520200S01 KG 8520-400V RAL7035 l
852020S62 KG 8520-400V S/S 304 l IP 56 / Type 12, 3, 3R,  4X
852500001 KG 8525-230V RAL7035 l IP 56 / Type 12, 3, 3R,  4 2,5 kW 230 V ~ 50/60 Hz
8525000S01 KG 8525-230V RAL7035 l
852500S62 KG 8525-230V S/S 304 l IP 56 / Type 12, 3, 3R,  4X
852510001 KG 8525-120V RAL7035 l IP 56 / Type 12, 3, 3R,  4 120V ~ 60 Hz
8525100S01 KG 8525-120V RAL7035 l
852510S62 KG 8525-120V S/S 304 l IP 56 / Type 12, 3, 3R,  4X
852520001 KG 8525-400V RAL7035 l IP 56 / Type 12, 3, 3R,  4 400/460 V 50/60 Hz 2~
8525200S01 KG 8525-400V RAL7035 l
852520S62 KG 8525-400V S/S 304 l IP 56 / Type 12, 3, 3R,  4X
854000001 KG 8540-230V RAL7035 l IP 56 / Type 12, 3, 3R,  4 4 kW 230 V ~ 50/60 Hz
8540000S01 KG 8540-230V RAL7035 l
854000S62 KG 8540-230V S/S 304 l IP 56 / Type 12, 3, 3R,  4X
854020001 KG 8540-400V RAL7035 l IP 56 / Type 12, 3, 3R,  4 400/460 V 50/60 Hz 3~
8540200S01 KG 8540-400V RAL7035 l
854020S62 KG 8540-400V S/S 304 l IP 56 / Type 12, 3, 3R,  4X
856020001 KG 8560-400V RAL7035 l IP 56 / Type 12, 3, 3R,  4 6 kW 400/460 V 50/60 Hz 3~
8560200S01 KG 8560-400V RAL7035 l
856020S62 KG 8560-400V S/S 304 l IP 56 / Type 12, 3, 3R,  4X
