THERMAL CONTROLS

THERMAL-CONTROLS

Our thermostats are available either as normally closed / NC (red dial) for regulating heaters, or for alarms when the temperature drops below a set minimum value. The contact opens when the temperature rises, or as a normally closed NO (blue disk) for regulating filter fans, heat exchangers, cooling devices or for switching alarms when the set temperature limit is exceeded. The contact closes when the temperature rises.

Thermal Controls CC 301 series

Order no. Description
301005 Pre-set temperature thermostat NC OFF @ 10°C (50°F) — ON @ 0°C (32°F)
301010 Pre-set temperature thermostat NC OFF @ 15°C (59°F) — ON @ 5°C (41°F)
301020 Pre-set temperature thermostat NC OFF @ 25°C (77°F) — ON @ 15°C (59°F)
301030 Pre-set temperature thermostat NO ON @ 35°C (95°F) — OFF @ 25°C (77°F)
301040 Pre-set temperature thermostat NO ON @ 50°C (122°F) — OFF @ 40°C (104°F)
301050 Pre-set temperature thermostat NO ON @ 60°C (140°F) — OFF @ 50°C (122°F)

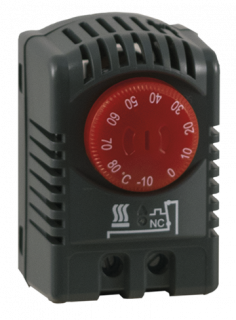

301110 Variable temperature thermostat NC -10°C — +80°C
301120 Variable temperature thermostat NO -10°C — +80°C
301210 Variable twin thermostat NCNC -10°C — +80°C
301220 Variable twin thermostat NONO -10°C — +80°C
301231 Variable twin thermostat NCNO -10°C — +80°C
301320 Changeover thermostat with thermal feedback (white knob)
301410 Mechanical changeover hygrostat, 40 — 90% (orange knob)
301510 Electronic changeover thermostat, -10 to 80°C, 24 V DC
301610 Electronic changeover hygrostat, 10 to 90%, 24 V DC *
301710 Electronic changeover thermostat & hygrostat, -10 to 80°C / 10 to 90%, 24 V DC *
